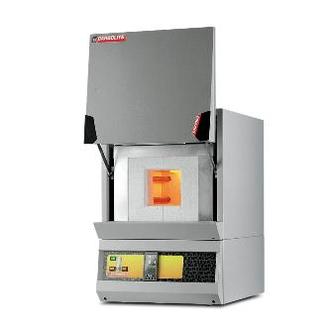

15 litre 1400ºC RHF furnace. The RHF range of furnaces is capable of maximum temperatures of 1400°C, 1500°C or 1600°C with chamber capacities of 3, 8 or 15 litres, ideal for heat treatment applications, often associated with technical ceramics.
This range of higher temperature laboratory furnaces feature silicon carbide heating elements located on either side of the chamber and hard wearing refractory brick around the door and hearth, which provides rapid heating and good resistance to abrasion. Safe operation is ensured
by a double skin construction providing natural air convection for low outer case temperatures.
Power to the elements is isolated as soon as the door is opened.
Prices include the PID digital controller (type 301). Multi-segment programmers are available as an option
Model |
15 litre |
|
Dimensions, w x d x h (mm) Internal: External: |
220 x 305 x 220 690 x 780 x 810 |
|
Maximum power |
10000W |
|
Weight |
151 kg |
|
Heat up time to 100°C below max temp, with empty chamber |
|
|
1400°C model: |
35 minutes |
|
1500°C model: |
45 minutes |
|
1600°C model: |
58 minutes |
