Product

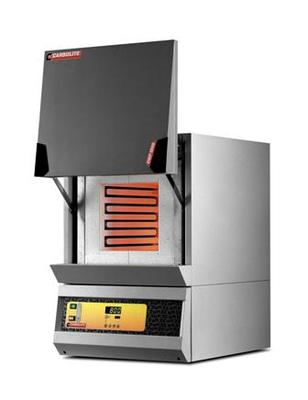

13 litre 1200ºC CWF furnace. The CWF range of furnaces is bench-mounted with maximum temperatures of 1100°C, 1200°Cor 1300°C with chamber capacities of 5, 13 or 23 litres, ideal for heat treatment applications. Heating modules are situated on each side of the chamber and house a free radiating element, which offer 50% faster performance in comparison with traditional embedded element designs.
Hardwearing materials are integral to the door surround and hearth, providing excellent resistance to everyday wear and tear, whilst secondary low thermal mass insulation ensures maximum thermal efficiency. Safe operation is ensured by a double skin construction providing natural air convection for low outer case temperatures. Power to the elements is isolated as soon as the door is opened.
Prices include the PID digital controller (type 301). Multi-segment programmers are available as an option.
Model |
13 litre |
|
Dimensions, w x d x h (mm) |
|
|
Internal: External: |
200 x 325 x 200 435 x 610 x 655 |
|
Power supply |
200-240V 50/60 Hz 13Amps |
|
Maximum power |
3100W |
|
Weight |
55 kg |
|
Heat up time to 100°C below max temp, with empty chamber |
|
|
1100°C model: |
55 minutes |
|
1200°C model: |
65 minutes |
|
1300°C model: |
80 minutes |
