Product
Feed Size:<10 mm
Final fineness:<5 µm / 100nm
Speed:60-2100rpm
Description

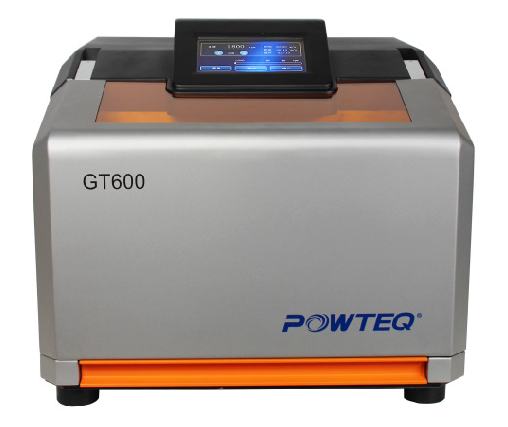

GT600 is a multi-functional benchtop ball mill, specially designed for fast preparation of ultra-fine sample. The maximum frequency is 35Hz.GT600 has stable performance and wide application, suitable for dry, wet and cryogenic griding of multiple but small volume samples, such as plant and animal tissues. Capable of handling 6-384 (high throughput) biological samples simultaneously, with sample volumes from 0.2 ml to 50 ml.
Application
○ Application Field:
Biology, Pharmaceuticals, Food Safety, Ecological Environment, Agriculture Science, Chemistry and Electronics.
○ Application:
Nucleic acid extraction sample pretreatment, preparation of ultrafine materials
○ Sample Type:
Hard, soft, elastic and fibrous samples.
○ Typical Samples:
Plant roots, stems, leaves, grains, seeds, oilseeds;
Human and animal tissues, viscera, bones, hair;
Ore, alloy, soil, glass, ceramics; rubber, plastic products, solid waste, electronic waste;
Paper, textiles;
Chemicals, medicines, Chinese medicinal materials, food;
Tobacco, timber, wool, etc.
Working Principle
Samples are placed into the grinding container (stainless steel jar or centrifuge tube/adapter), which oscillate radially in the horizontal direction. Under the action of high frequency oscillation, the grinding balls hit the sample and the inner wall of the grinding jar intensively, thus sample size reduction is achieved.
Features and Advantages
○ Typical grinding time: tens of seconds - 2 hours
○ Dry, wet, cryogenic grinding and mixing
○ High throughput : Up to 384 samples simultaneously
○ Programmable operation time, intermittent grinding and method storage
○ Transparent window on the top lid enables to observe the grinding status during grinding
○ Highly reproducible grinding results with digital presetting of parameters
○ Various materials and sizes of grinding jars and accessories for option, can meet more wider range of application requirements
○ Equipped with safety lock on the top lid. The motor will stop running once the lid is opened during grinding to ensure safe operation.
| Technical Data |
|
Feed Size |
<10 mm |
|
Final fineness |
<5 µm / 100nm (depends on the property of sample) |
|
Speed |
60-2100rpm |
|
Total grinding time |
0-99hrs |
|
No. of grinding stations |
6/2 |
|
Grinding jar sizes |
1.5/5/10/25/35/50/80/125ml |
|
Material of grinding tools |
hardened steel, stainless steel, tungsten carbide, zirconium oxide, agate, PTFE |
|
Cell disruption adapter |
Yes |
|
Batch capacity |
6 x 20ml/2x45ml |
|
Storable SOPs |
20 |
|
Editable programs |
4 |
|
Wet/Cryogenic grinding |
Yes |
|
Rated power |
1.1kw |
