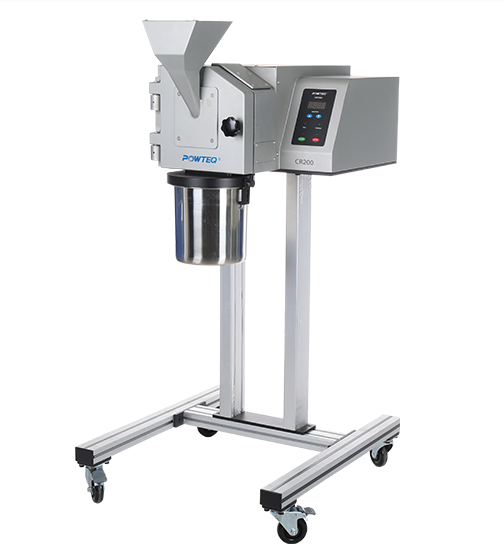

Rotor Beater Mill CR200 can grind soft and hard materials by impact and shear action to achieve grinding effect.

Typical samples

pharmaceutical products, seeds, building materials, soil, chemicals, medicines, fertilizers, feed granules, grains, spices, coal, etc.

Working principIe

Sample enters the center of grinding chamber through the hopper, and was crushed between the rotor, sieve by impact and shear effects.Once the sampe size if samller than the apterture size of the sieve, they will enter into the receivning container. The quick locking design of the mill door ensures convenient cleaning of and fast access to the grinding chamber.

Accessories

-	180° bottom sieves：suitable for soft, medium hard shell grain samples
-	360°bottom sieves：suitable for soft and brittle grain samples
-	Rotor for CR200:mainly used for crushing grain,for example:wheat,corn,soybean.

Features and advantages

○Adjustable speed of 3,000-10,000RPM to suit different application requirements
○The maximum feed size is 25 mm
○Final fineness d 90 < 50 µm
○180 degree sieve suitable for hard samples, such as grain with shell
○360 degree sieve suitable for medium-hare, ductile and fibrous samples
○Defined final fineness due to sieves with aperture size from 0.08-10.0mm
○Strong airflow due to high rotational speed can quickly cool the sample and facilitate sample collection and cleaning of grinding chamber
○Easy cleaning thanks to exchangeable push-fit grinding sieve, rotor

Connect cyclone separator, small volume sample receiver

When  CR200 is used with a cyclone separator, it is suitable for handling light or small volume samples. The use of cyclone separator extends the applications of the Rotor Beater Mill. It not only effectively solves the heat transfer problem during the grinding process so as to make cleaning easily, but also improve the uniformity and reproducibility of the grinding results.



TechnicaI data

Feed size	≤25mm	Grinding chamber material	stainless steel, 1.1740 steel, hardened steel
Final fineness	40μm-10mm	Rated power	3.7KW
Speed	3000-10000rpm	Power supply	380V，50/60Hz
Collector capacity	0.25-30L	Instrument size	590*705*1260mm
Collector	0.25L、0.5L、1L、3L、5L、30L	Package size	1000*1000*1450mm
Peripheral speed	21.4-71.2m/s	Net weight	120kg
Sieves	0.08/0.20/0.25/0.50/1.00/2.00/4.0/6.0/8.0/10.0mm
